Description

Key Features

• Routes SDI signals to HDMI monitors.
• 30-bit Deep Color RGB signal output
• Passes 8 of 16 SDI audio channels to HDMI output
• 0 to 7 frame audio delay synchronization
• 2-channel RCA analog audio output
• PSF to Progressive conversion
• Includes international power supply
• Configurable via AJA MiniConfig software

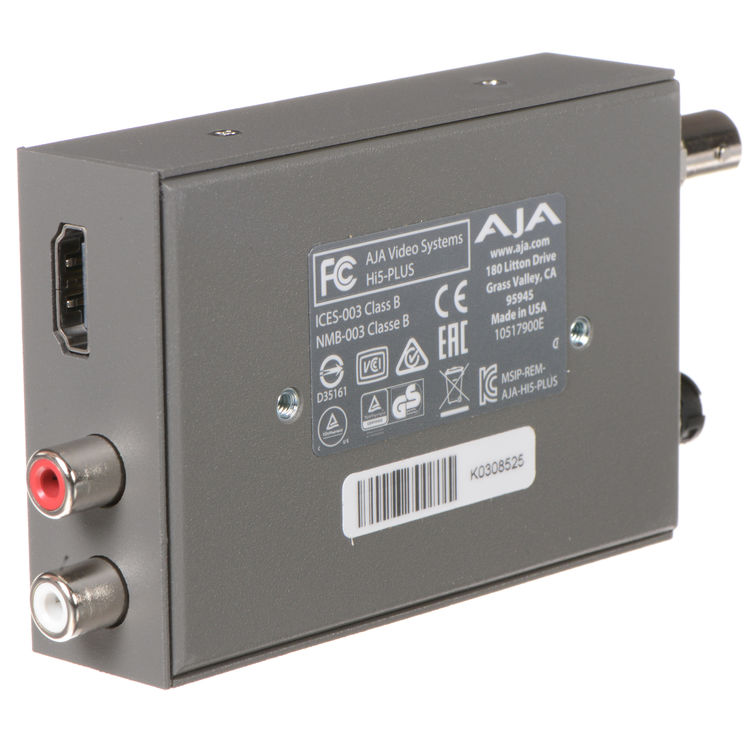

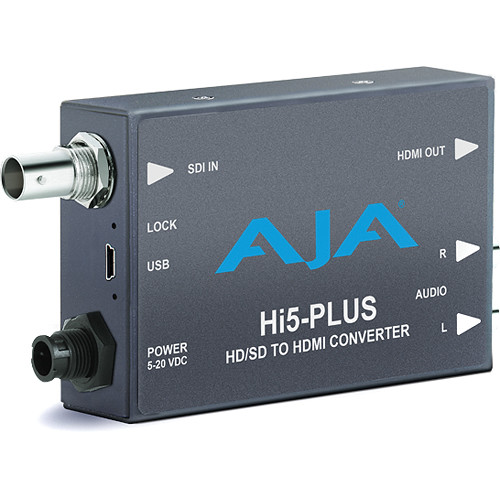

AJA Hi5-Plus Overview

The AJA Hi5-Plus 3G-SDI to HDMI Mini-Converter allows you to send an SDI signal to an HDMI monitor. When used with a compatible HDMI monitor, it outputs a 30-bit Deep Color RGB signal, providing the full color range available in a 3G/HD-SDI signal.

Using the AJA MiniConfig control software (free download), you can select 8 of the 16 embedded SDI audio channels and route them to the HDMI output. You can also delay the audio from 0 to 7 frames for proper synchronization with the output video. Two RCA audio outputs allow separate RCA audio output simultaneously with HDMI audio. MiniConfig also provides detailed information about the current input and output formats, allows control of all Hi5-Plus parameters, and enables firmware updates. It is compatible with Mac and PC and connects to the converter via a USB connection between the converter and the computer.

The Hi5-Plus features a compact, portable, and rugged design, and includes a universal power supply with international plug adapters for worldwide use.

Deep Color HDMI

When used with a compatible HDMI monitor, the Hi5-Plus outputs a 30-bit Deep Color RGB signal, providing the full color range available in a 3G/HD-SDI signal.

Audio Integration

Using the AJA MiniConfig control software (free download), you can select 8 of the 16 embedded SDI audio channels and route them to the HDMI output. Audio can also be delayed from 0 to 7 frames for proper synchronization with the output video. Two RCA analog audio outputs allow direct external monitoring without the need for separate audio extraction.

PSF to Progressive Conversion

HDMI monitors do not natively support PsF signals, but the Hi5-Plus converts incoming 1080PsF signals to 1080p for full compatibility.

USB and MiniConfig Support

The Hi5-Plus supports AJA’s free MiniConfig software, which provides detailed information about current input and output formats, allows control of all Hi5-Plus parameters, and enables firmware updates. MiniConfig is compatible with Mac and PC and connects to the converter through a USB port.

Universal Power Supply

A universal power supply with international plug adapters is included for worldwide use.
