Description

Key Features
Switch, stream, and record HD video
6 HD video inputs
XLR audio inputs
1 M/E bus
2 keyers
Picture-in-Picture
H.264 SD card recording
Portable suitcase-style design

Datavideo HS-1300 Overview

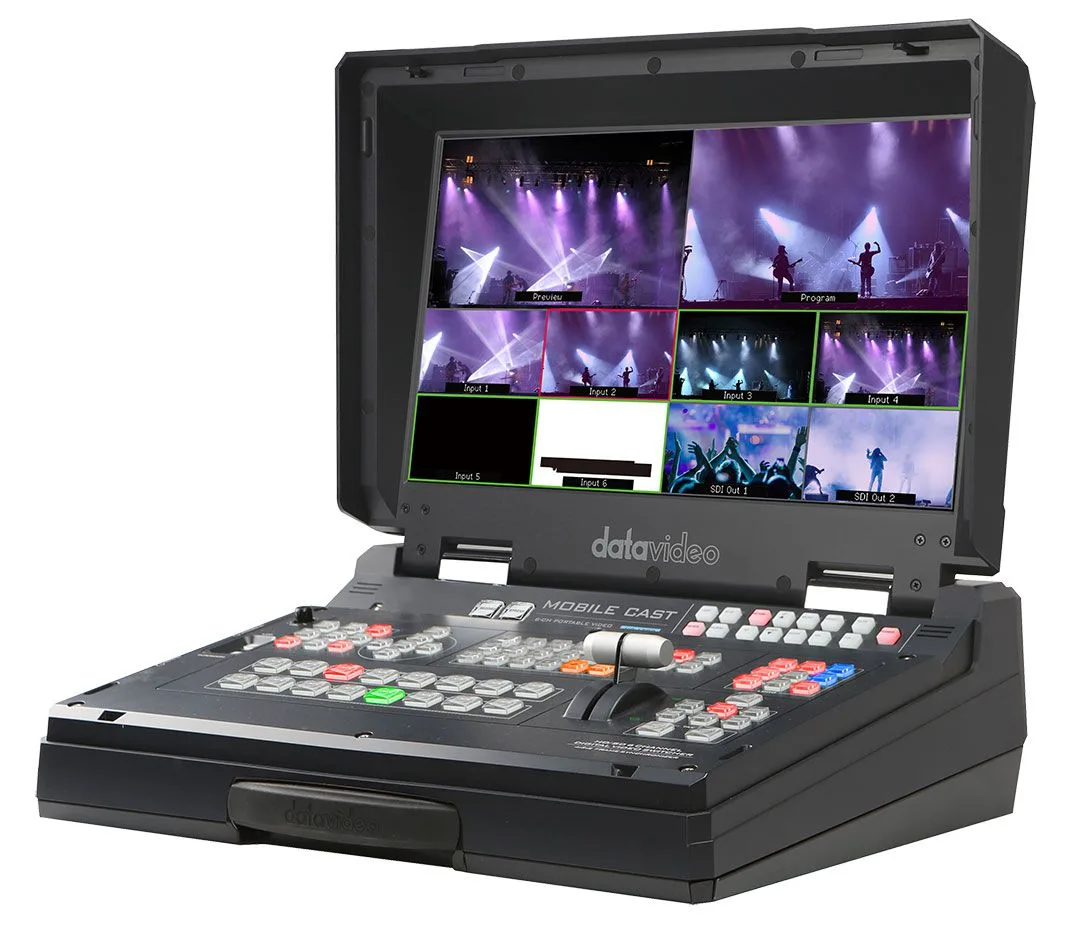

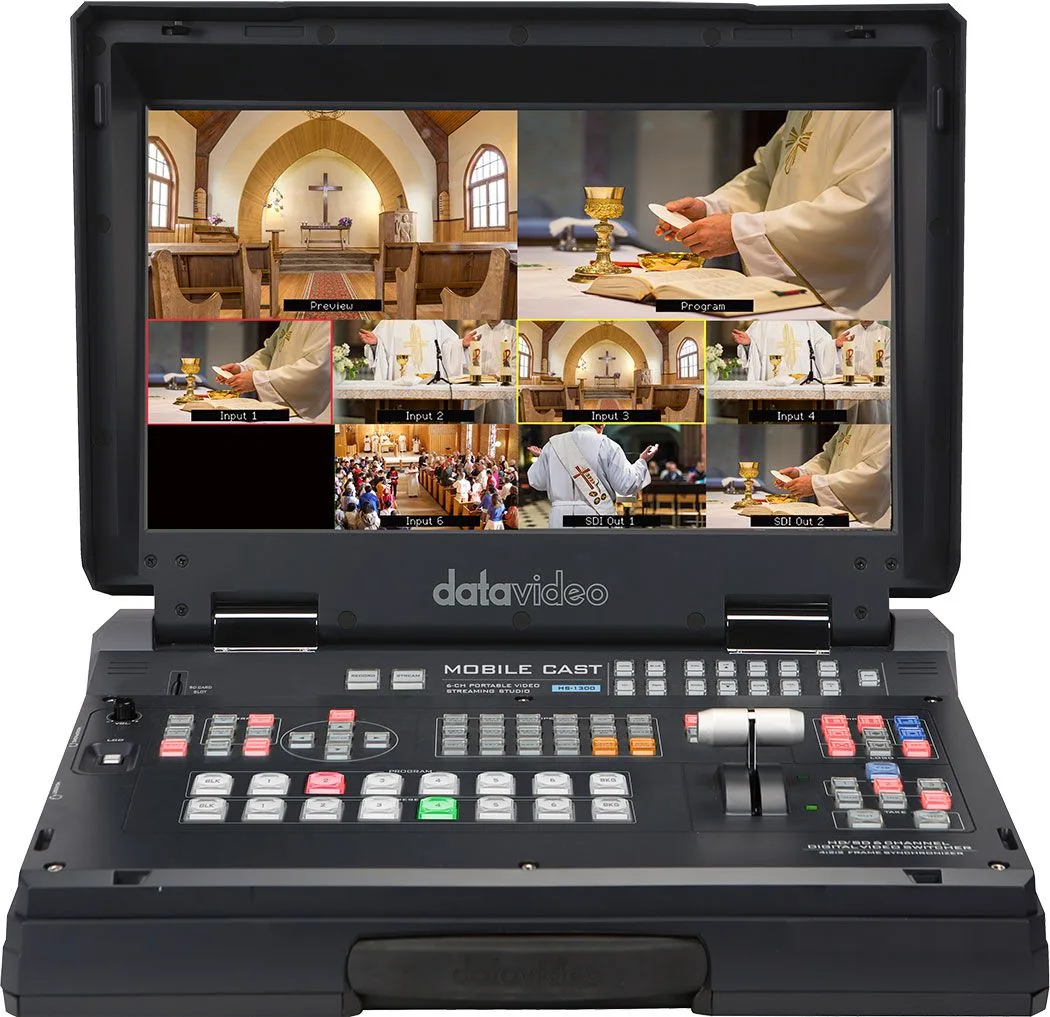

The Datavideo HS-1300 6-channel HD portable video streaming studio allows switching between up to six live HD video signals in 1080i or 720p, while recording and streaming the program output. In practice, it functions as a portable TV studio that can be easily transported and set up without the need for additional equipment.

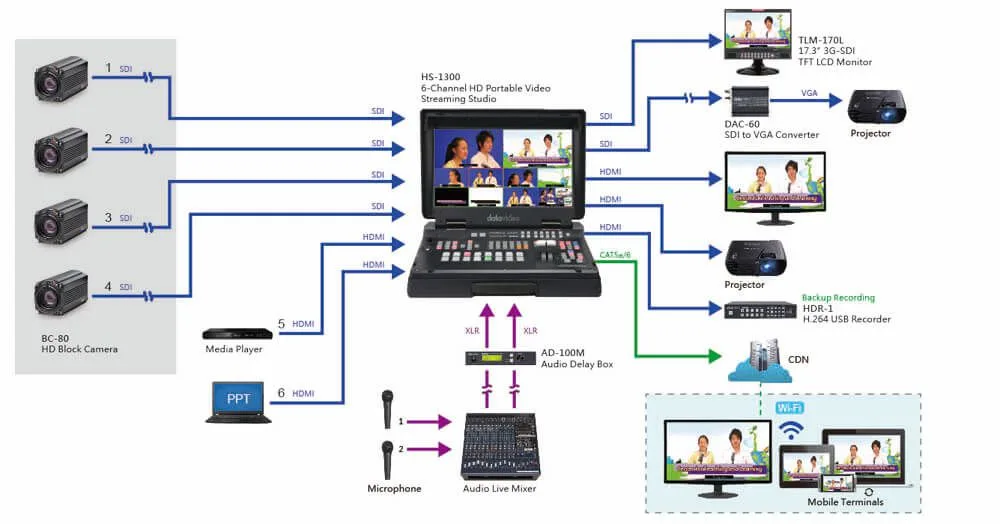

It features four SDI inputs and two HDMI inputs for connecting cameras or other video sources, whether consumer or professional. Audio can be integrated via an external mixing console (not included) through two XLR inputs.

Recording and streaming are performed using the widely adopted H.264 format, with bitrates of up to 10 Mb/s.

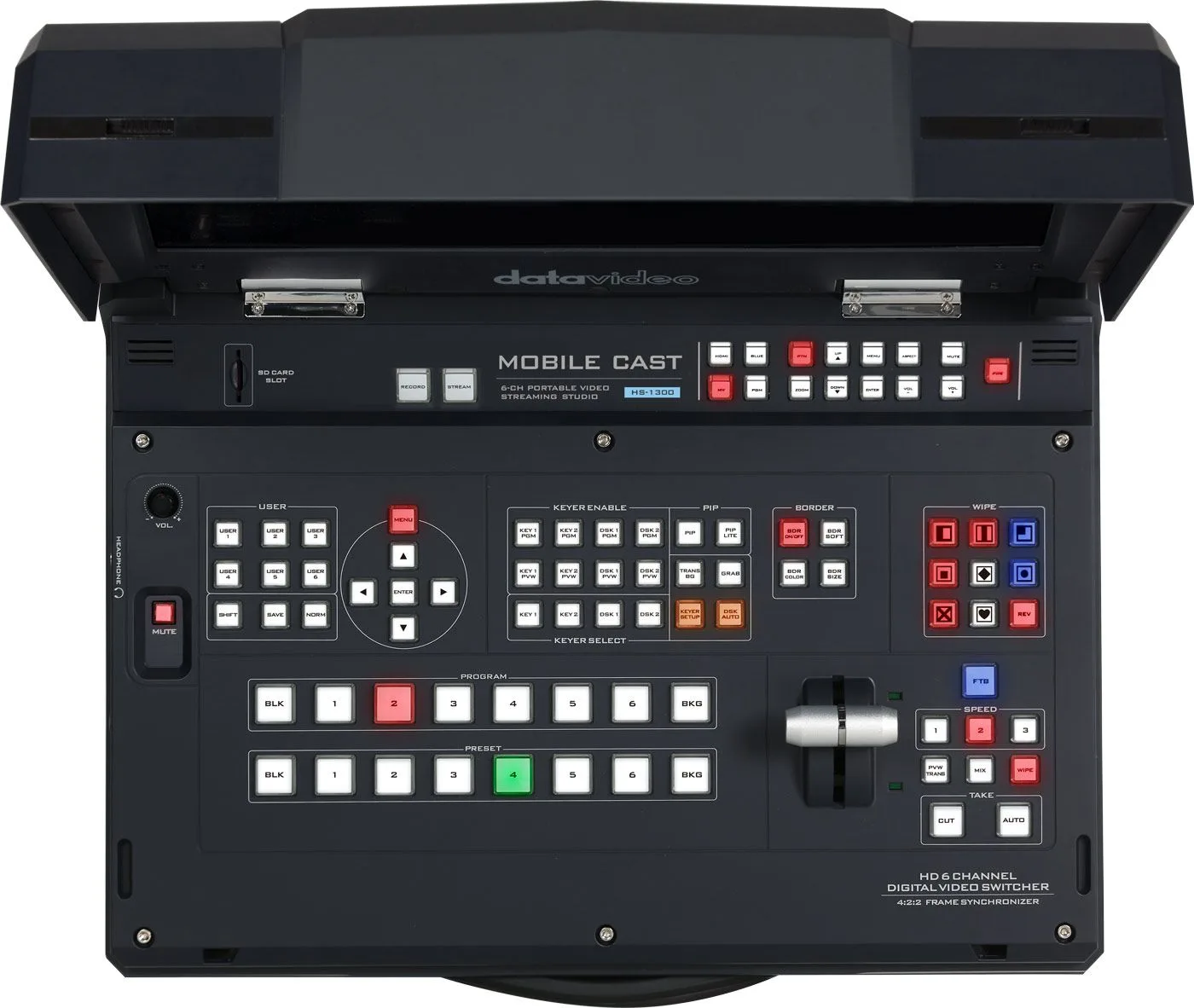

It includes a mix-effect bus with two upstream keyers and two downstream keyers, supporting linear and luma key modes, as well as wipe, cut, and mix transitions, plus picture-in-picture functionality—all with full preview.

It is ideal for concert productions, events, houses of worship, and educational institutions with live sports broadcasting.

At the end of production, simply close the 17.3″ screen, disconnect the video sources, and carry the unit using the built-in handle, like a suitcase.

Additional Features

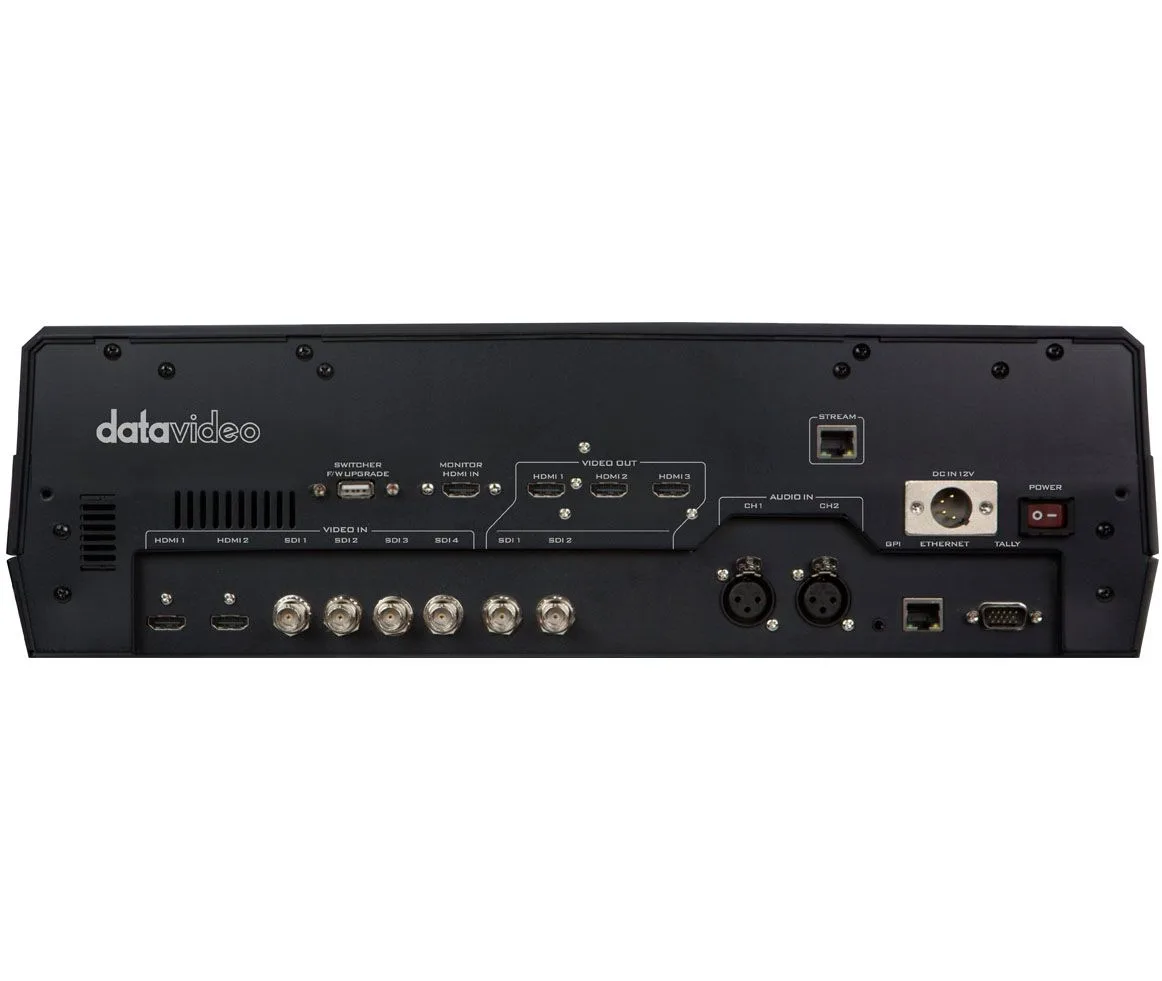

Supports 6 video inputs (4 SDI, 2 HDMI) and 3 video outputs (2 SDI, 3 HDMI)
Encoding at multiple bitrates for recording and streaming
H.264 AVC encoding up to 10 Mb/s
Two XLR audio inputs
Frame capture from any input
Cross-point assignment
Tally and GPI output
17.3″ LCD screen with 1600 x 900 resolution
Easy-to-navigate on-screen menu system
Headphone output for audio monitoring in program mode
