Description

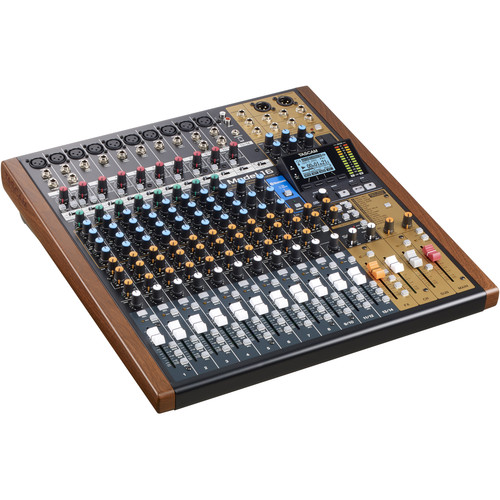

The highly flexible TASCAM Model 16 is a powerful, versatile hybrid mixer/recorder/audio interface designed for both live and recording applications. It is well suited for bands, studios, conferences, podcasts, houses of worship, and more. The full-featured, space-saving mixer offers 14 input channels, including 10 HDDA microphone preamps with phantom power, two 1/4″ Hi-Z jacks, eight balanced 1/4″ mono line inputs, and two balanced 1/4″ stereo line inputs. Additionally, the last stereo input can accept signals from various sources including Bluetooth, USB, RCA, or a 3.5mm stereo mini jack.

Single-knob compression is available on the first eight channels, while three auxiliary sends provide signal routing to a dedicated monitor and to one of 16 onboard multi-FX presets. The main and sub stereo buses offer simple grouping as well as a selectable 4-band semi-parametric EQ for precise mix adjustments. The Model 16 provides 15 faders with 60mm throw for smooth and responsive mixing.

Each channel can receive audio from live inputs, the internal multitrack recorder, or the USB 2.0 audio interface, offering flexibility in any production environment. The integrated 16-track recorder, inspired by TASCAM’s Portastudio series, allows recording of the 14 input channels plus the main mix to an SD card, along with multichannel playback for advanced live backing or mixing. The intuitive interface also enables overdubbing and punch in/out recording without navigating complex menus.

Additionally, the Model 16 includes a 16×14 USB 2.0 audio interface supporting up to 24-bit / 48 kHz resolution for DAW-based recording and playback.

Mixer

• 14 total input channels

• 10 microphone preamps with 48V phantom power

• Two Hi-Z instrument inputs

• 12 balanced line inputs (eight mono, two stereo)

• Single stereo channel for Bluetooth, USB, RCA, or 3.5mm stereo input

• Inserts on channels 1–2

• Main and sub stereo buses

• Three aux sends (monitor 1, monitor 2, and effects)

• Single-knob compressor for channels 1–8

• 4-band semi-parametric stereo EQ selectable for main or monitor outputs

• Bluetooth 5.0 wireless connectivity

• Built-in effects processor with 16 editable presets, including reverb, delay, chorus, and flanger

• 60mm faders for precise level control

• Independent channel assignment for live inputs, internal MTR, or USB playback

• Balanced XLR main outputs

• Balanced 1/4″ TRS sub outputs, aux outputs, and control room outputs

• 1/4″ stereo headphone output with dedicated volume control

Recorder

• Multitrack recording function inspired by the TASCAM Portastudio

• 16 tracks (14 input channels plus the main mix) recorded to SD card

• Multichannel playback for advanced live performance backing or mixing

• Punch in/out recording capability

• Overdub up to eight tracks simultaneously

Audio Interface

• USB 2.0 audio interface

• 16 inputs (14 input channels plus the main mix)

• 14 outputs

• Recording resolution up to 24-bit / 48 kHz

• Low round-trip latency

Optional Accessories

• RC-1F footswitch (sold separately) for hands-free effects switching

• Model 16 rackmount kit (sold separately) for mounting in a 19″ rack

• Model 16 dust cover (sold separately) for protection against dust, scratches, and moisture
